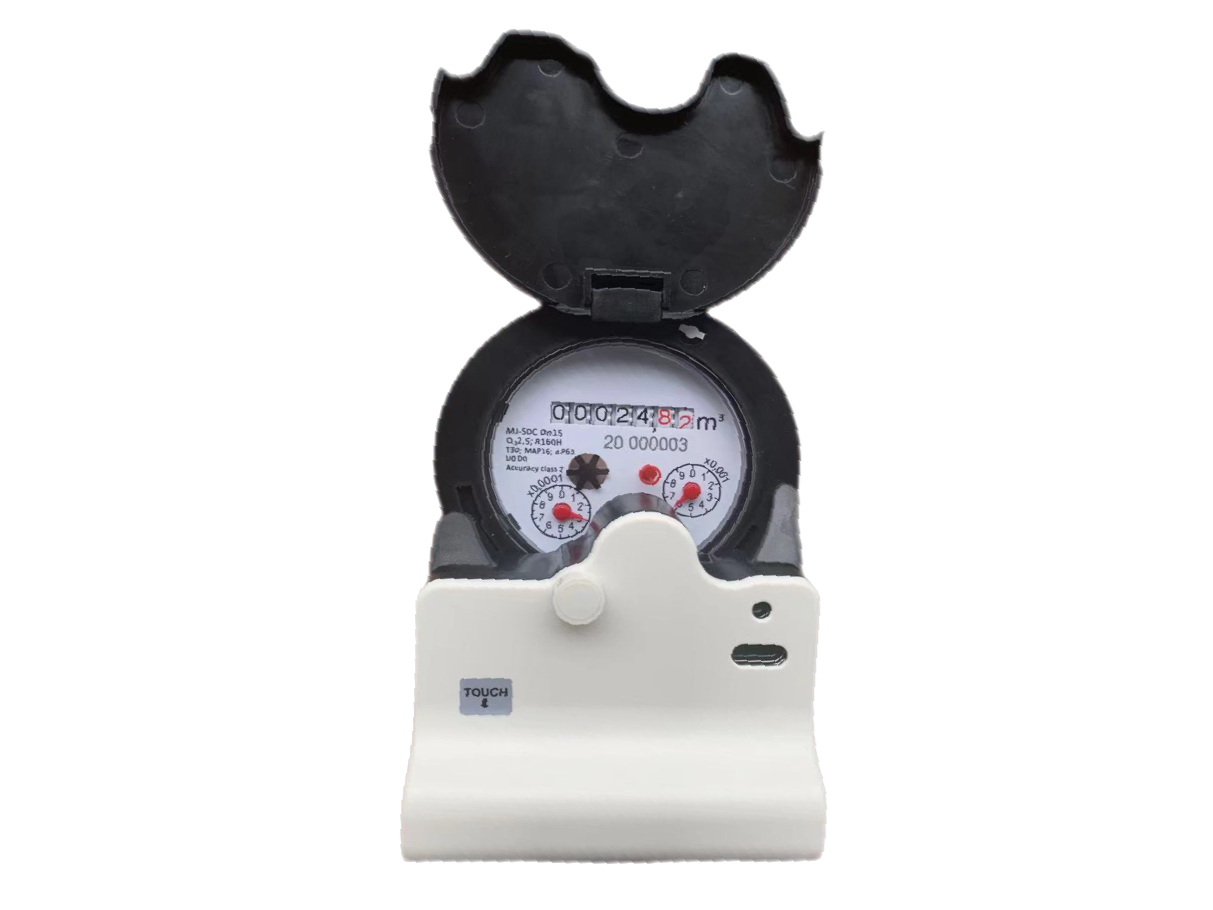

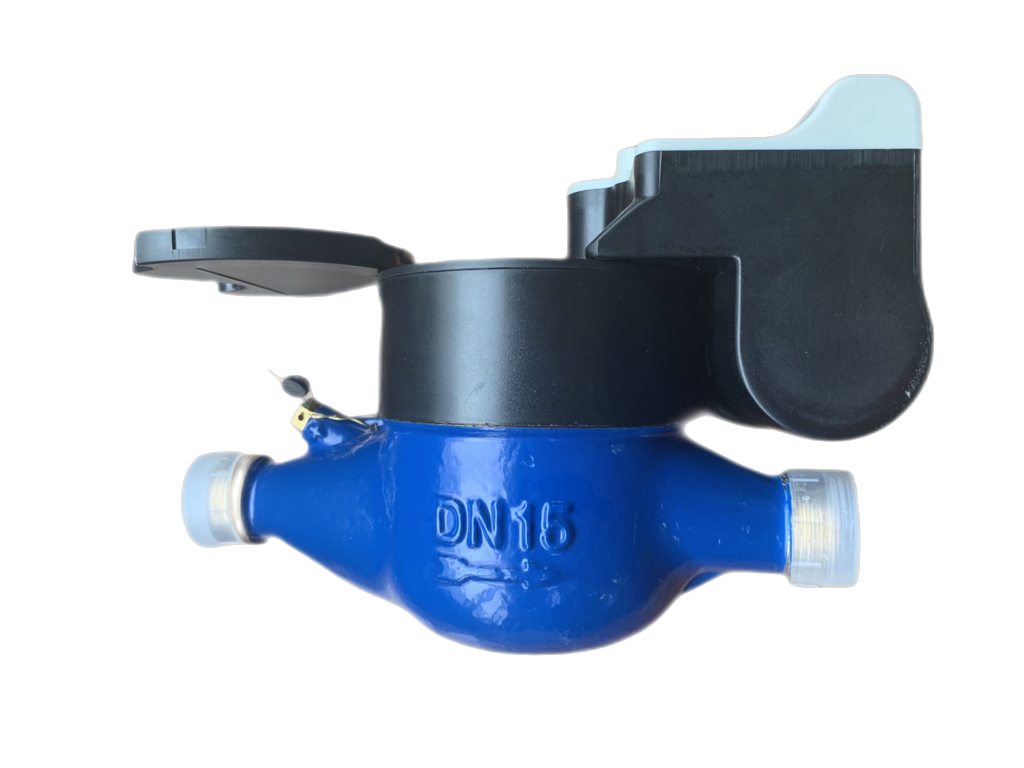

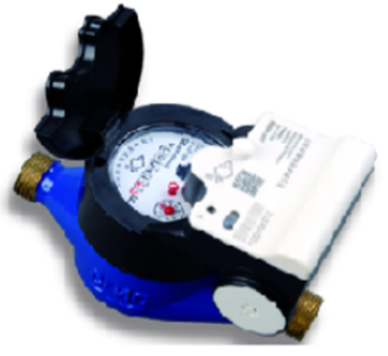

Multi-Jet Non-Magnetic Inductance Water Meter R160 Dry Type
Multi-Jet Non-Magnetic Inductance Water Meter R160 Dry Type
Features
Ideal for residential use, often used for public utilities
For hot and cold water, mechanical drive
Comply with ISO4064 standard
Certified for using with drinking water
IP68 Waterproof grade
MID certificate
Electromechanical separation, replaceable battery
Technical Specs
| Item | Parameter |
| Accuracy Class | Class 2 |
| Nominal Diameter | DN15~DN20 |
| Valve | No valve |
| PN Value | 1L/P |
| Metering mode | Non-magnetic inductance metering |
| Dynamic Range | ≥R250 |
| Maximum Working Pressure | 1.6MPa |
| Working Environment | -25°C~+55°C |
| Rating of Temp. | T30 |
| Data Communication | NB-IoT, LoRa and LoRaWAN |
| Power Supply | Battery powered, one battery can work continuously over 10 years |
| Alarm Report | Support real-time alarm of data abnormality |
| Protection Class | IP68 |
Communication scheme | NB-IoT | LoRa | LoRaWAN |
Product model | HAC-NBh | HAC-ML | HAC-MLW |
Emission current | ≤250mA | ≤130mA | ≤120mA(22dbm) ≤110mA(17dbm) |
Transmitting power | 23dBm | 17dBm/50mW | 17dBm/50mW |
Average power consumption | ≤20μA | ≤24μA | ≤20μA |
Frequency band | NB IoT dedicated band | 433MHz/868MHz/915MHz | (433~510MHz or 863~928MHz) compatible LoRaWAN ? |
Read data with the help of the Handheld | Support | Support | Do not support |
Communication distance (sight distance) | ≥20Km | ≥10Km | ≥10Km |
Setting mode | Infrared setting and upgrade | FSK setting | FSK setting or Infrared setting and upgrade |
Real-time performance | Not real-time | Real-time control meter | Not real-time |
Data downlink delay | 24h | 12s | 24h |
Battery life | ER26500 battery life: 8 years | ER18505 battery life: about 13 years | ER18505 battery life: about 11 years |
Base Station | Using the base stations of NB-IoT operator, 50000 meters for one base station | One concentrator can manage 5000pcs water meters, no repeater. | One LoRaWAN gateway can cconnect with 5000pcs water meters, the gateway supports WIFI, Ethernet and 4G. |
Use scenario analysis | It can be used wherever there is NB IoT signal coverage | The equipment is relatively far away, which can control the valve in real time, read data, and set downlink relay | There are no relay and handset devices, relying on LoraWAN network coverage, self built network, and gateway deployment needs to be added |
